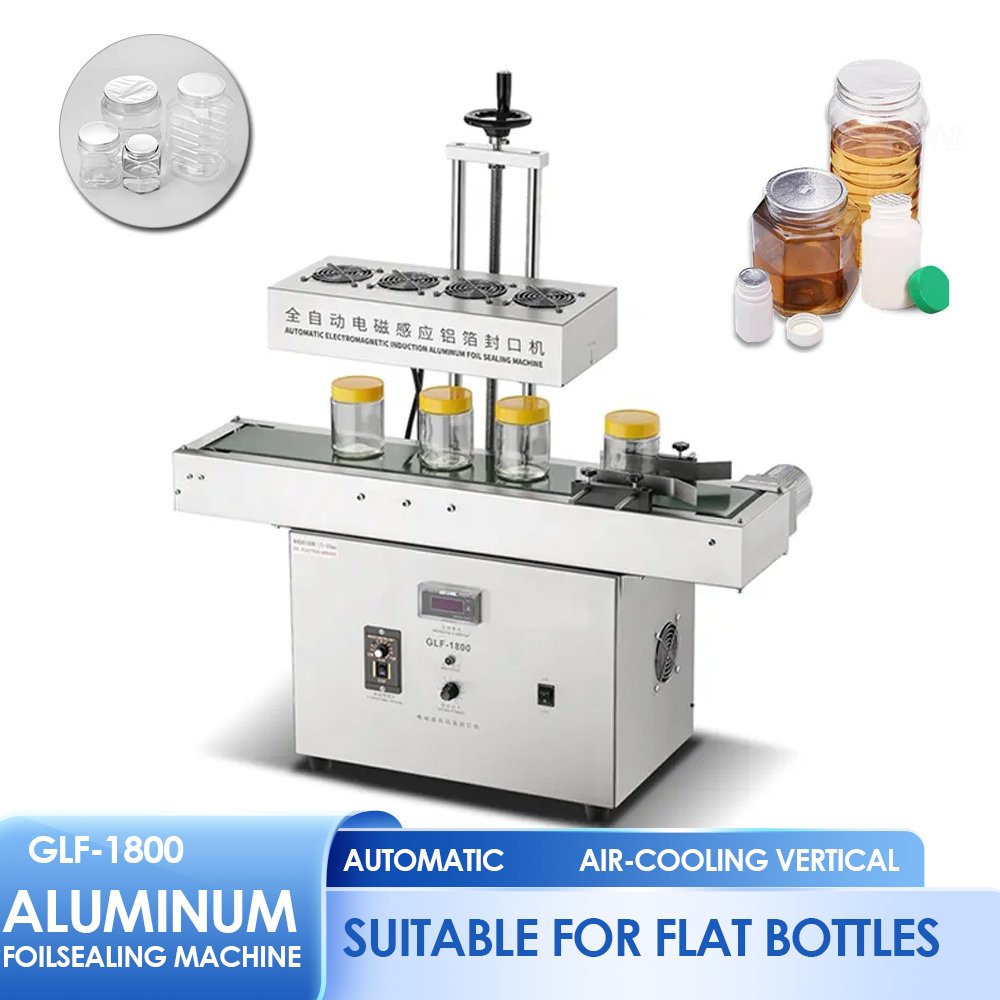

Vertical Electromagnetic Induction Aluminum Foil Sealing Machine

Name
Automatic Foil Sealing Machine
Model
GTF-1800/GTF-2100
Power
220V 50/60HZ 2400W
Sealing Diameter
10-40mm/15-60mm/25-70mm/or customize
Sealing Height
20-300mm or customize
Conveyor Size
800*225mm
Machine Size and Weight
900*310*1040mm 35KG



This machine is based on the principle that metal objects generate huge eddy currents and generate heat under the action of high-frequency electromagnetic fields. The aluminum foil is heated by electromagnetic induction to melt the adhesive film under the aluminum foil and adhere to the bottle mouth to achieve continuous and fast non-contact sealing.

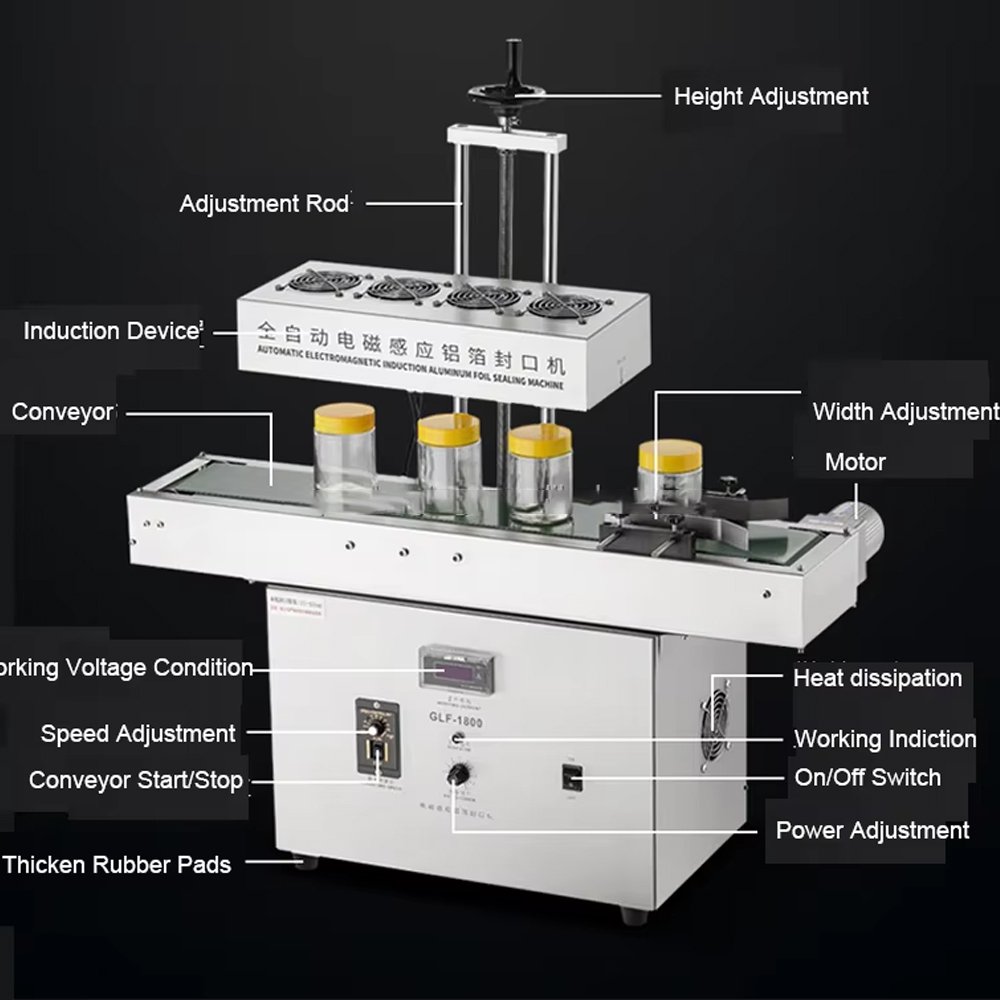

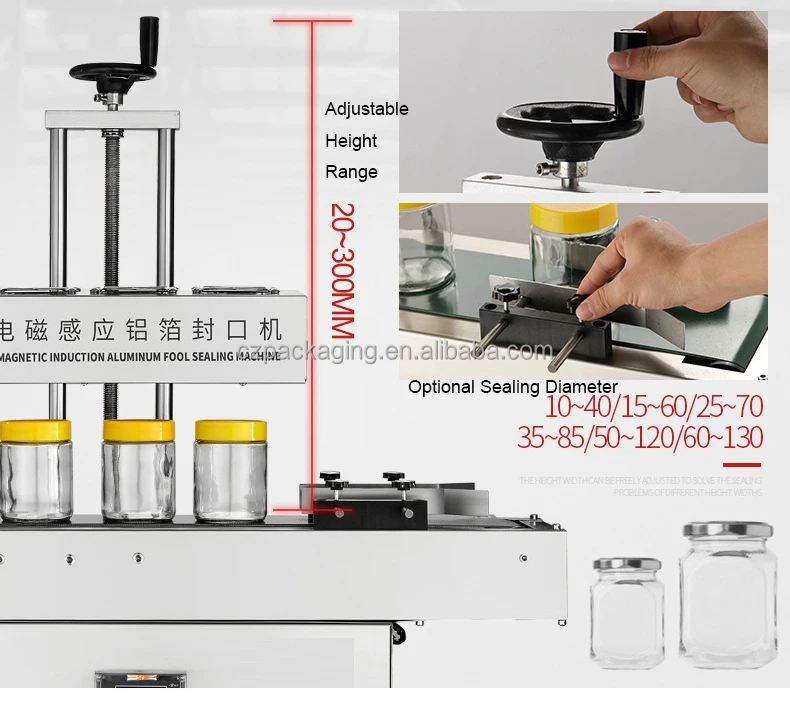

Table height freely adjustable
The height of the seal can be adjusted according to the needs of the actual use scene, and the lifting handle can be adjusted to
control the height of the seal to be raised or lowered.
Product Application
This machine is mainly suitable for the sealing operation of non-metallic bottles with threaded flat caps and small diameter plastic and glass bottles. It is not suitable for metal, non-threaded bottle caps, high-shaped caps with gaps, and sealing operations where the diameter of the bottle mouth is larger than φ10 and smaller than φ130 mm. It is suitable for users who need continuous sealing operation with large output and batch. It is an ideal sealing equipment for medicine, pesticide, food, cosmetics, lubricants and other industries. Suitable for medicine bottles, health care products, plastic bottles, aluminum foil, and aluminum foil film. The material of the sealed container can be polyethylene (PE), polypropylene (PP), polyester (PET), polystyrene (PS), ABS, glass, etc. Note: Cannot be used for metal bottles and caps.
